Layer Chicken Cage The Optimal Solution for Modern and Profitable Poultry Farming

Product Description:

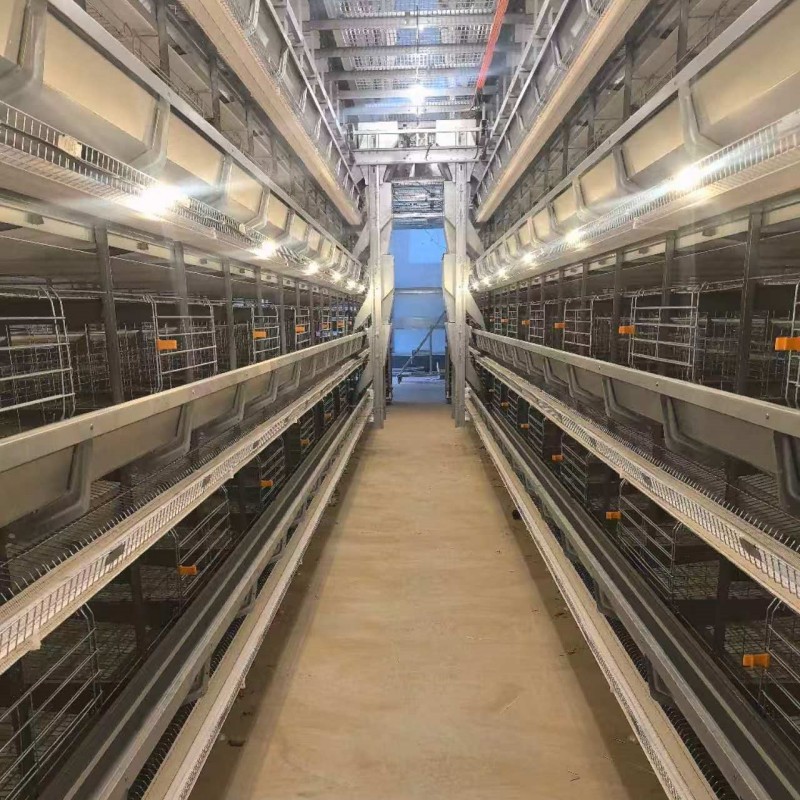

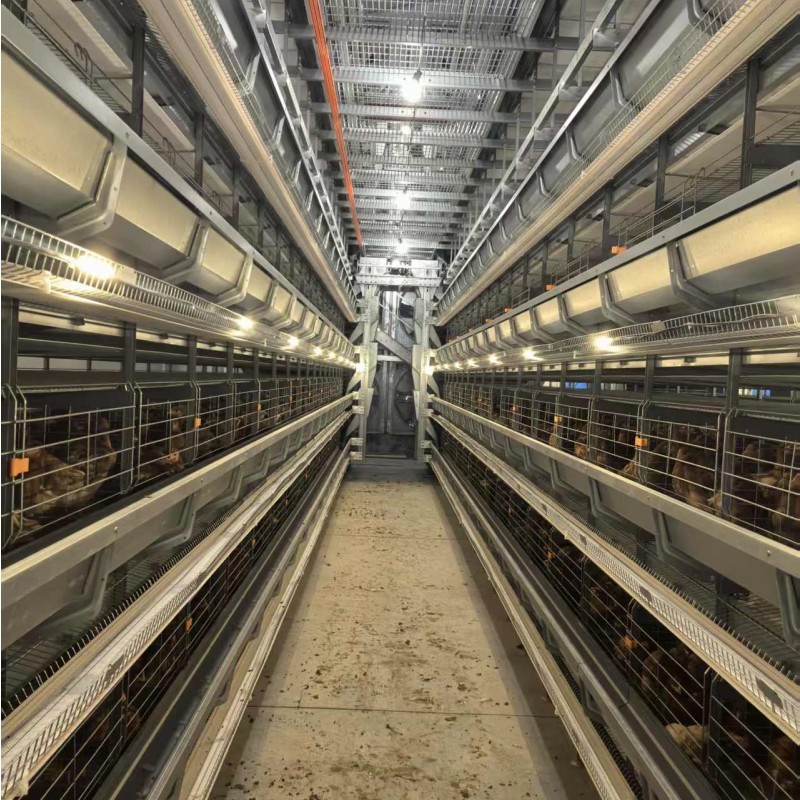

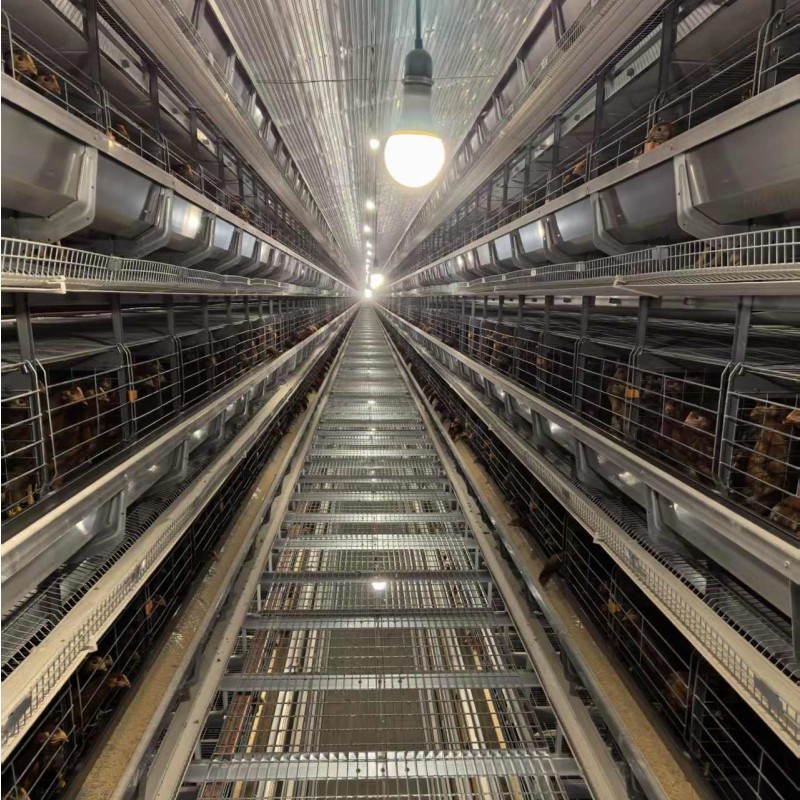

The H-type layer cage is a fully automated, multi-tiered system designed for high-density farming while maximizing space utilization.

· Structure: The system consists of a central cage frame that supports multiple groups of cages stacked vertically in an "H" configuration. Each group typically includes two rows of cages set back-to-back
· Capacity and Tiers: These systems are highly customizable, commonly available in 4 to 8 tiers . The capacity per cage set varies, with common models holding 72, 90, 112, 140 birds
· Space per Bird: The area provided per chicken is typically around 450 cm² or 400 cm² .

Features:

Automatic Feeding System Ensures chickens receive proper nutrition consistently. Reduces labor, ensures consistent feeding.
Automatic Drinking System Provides constant clean water, often nipple drinkers . Keeps birds hydrated, improves hygiene.
Automatic Manure Cleaning Removes waste from each tier. Maintains hygiene, reduces disease risk and ammonia levels.
Automatic Egg Collection Gently collects eggs via an integrated system. Minimizes labor, reduces egg breakages and damage.
Environmental Control Regulates temperature, humidity, and ventilation. Creates optimal conditions for hen health and productivity.

1.Manure System: The system is designed so that manure from upper tiers drops into a pit or onto a conveyor belt without contaminating the lower cages .
2.Egg Collection: Cages feature a slanted rolling egg net at the bottom, which allows eggs to gently roll out to a collection tray or conveyor for easy gathering .

3.Technical Specifications and Materials

The construction quality and materials are crucial for the system's durability and performance.

 Material: The cages are predominantly made from hot-dip galvanized steel . This process provides a thick, durable coating that is highly resistant to rust and corrosion, significantly extending the equipment's lifespan, often to 15-20 years .
Typical Cage Size: Common overall dimensions for a set are around 650mm (length) * 1250mm (width) * 3300mm (height) . Individual cell sizes are often around 650mm (length) * 625mm (width) * 500mm (height) .


Technical Parameters:

Advantages:

The H-type layer cage system offers several key benefits for commercial egg production:

· Space Efficiency: It dramatically increases bird density per unit area of land. One source notes it can save up to 40% more space compared to older step-cell cage systems.
· Improved Productivity: Automated systems and a controlled environment help reduce stress on the birds, leading to better feed conversion rates and higher, more consistent egg production.
· Enhanced Bird Health and Safety: Automatic manure removal minimizes contact with waste, lowering the risk of infection and disease spread. The design of the cage nets also helps protect the birds' feathers.
